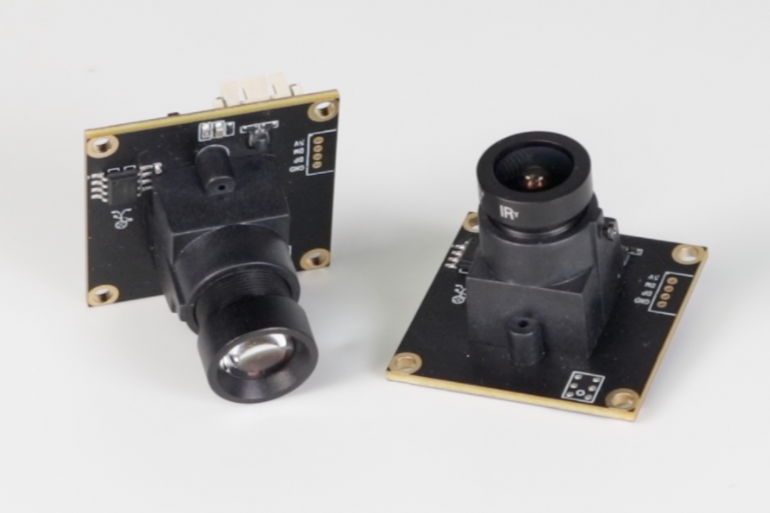

LumenPnP v4 USB Camera Set

This listing is for the new and improved cameras used in every LumenPnP v4 machine. They are custom engineered for SMT pick and place machines with specially chosen lenses and specific software Device IDs to help with OpenPnP setup.

The following items are included in the camera set:

• 1x Top Camera
  • 12mm 1/2.5" Lens
  • 33º Diagonal FOV
  • Device ID: "LumenPnP Top"
  • Supports 1080p 30FPS
• 1x Bottom Camera
  • 4mm 1/2.7" Lens
  • 120º Diagonal FOV
  • Device ID: "LumenPnP Bottom"
  • Supports 1080p 30FPS

Note on camera cables:
This listing provides the choice of whether or not to include cables with the purchase of the LumenPnP v4 USB Camera Set.

You may or may not need to purchase cables through this listing - this depends on what other upgrade parts you are purchasing. Please read the following guidelines for answering the variant selection question below correctly:

• Select "No Cables" if you are purchasing the Drag Chain Assembly Kit and Frame Cable Harness Set listings in addition to this item.
• Select "Cables Included" if you are not purchasing both the Drag Chain Assembly Kit and Frame Cable Harness Set.

If you are still unsure of what you need, please do not hesitate to contact our support team!

Estimated 2 Week Lead Time
