LumenPnP v4
Accurate and Reliable PCBA Assembly On Your Desktop
Ships within four weeks
Currently shipping v4.0.0
Save weeks during prototyping.
Quickly assembling prototype batches in-house with the LumenPnP saves weeks of engineering time, getting your boards in hand for testing as fast as possible.
De-risk production.
Running your first production batch on a LumenPnP de-risks your design at smaller quantities before sending it to a Contract Manufacturer. And for medium quantities, keeping it in-house is less expensive than outsourcing.
Game-changer for your business.
"The LumenPnP is such a game-changer for prototyping. I love that I'm not dependent on an assembly/EMS party. In the end, it saves time and costs."
Mark van den Brink, Currentt
"The affordability and scalability make it a no brainer for me. I also have loved the support I get from the Opulo team. In several thousand hours of run time logged, [Opulo] has always been there."
Ken Taylor, Utility Innovation Group
"The LumenPnP has enabled me to produce small/medium batches on my own without the need for reaching out to a contract manufacturer. I can react quickly on customer requests or apply improvements directly on the next batch."
Dr. Erik Lins, chip45
As Small As 0402
The LumenPnP can easily populate small passives and fine pitch ICs, supporting even your tightest tolerance PCBAs.
0402
Passives
0.4mm
Pitch ICs
0.5mm
Pitch BGA
Save Weeks of Development Time
16x Faster
Than Hand Assembly
13x Faster
Than Outsourcing
The LumenPnP v4 has been tested up to 1580 Chips per Hour (CPH). Even when considering a fast hand assembly speed of 95 CPH, the LumenPnP is still 16 times faster than building boards by hand. Having a LumenPnP configured for your job lets you immediately assemble your PCBAs upon receipt.
LumenPnP
| Step | Time |
|---|---|
| Quick Turn PCB Fab | 24 Hours |
| Population | 2 Hours |
| Total | 1-2 Days |
Outsourcing
| Step | Time |
|---|---|
| Quote | 2 Days |
| Assembly | 10 Days |
| Shipping | 2 Days |
| Total | 14 Days |
1 h 32 m
5 h 15 m
83 h 7m
Based on a 100 unit run of benchmark PCBAs
Read Our White PaperFeeders Fully Automate Assembly
Our robust feeder ecosystem adheres to the ubiquitous ANSI EIA-481-F taping standard.
Feeders allow your machine to run without spool swaps for thousands of placements.
Job Setup Made Easy
Our configuration tool makes job preparation easy. Input your unique part count and it will provide the optimal config for your machine.

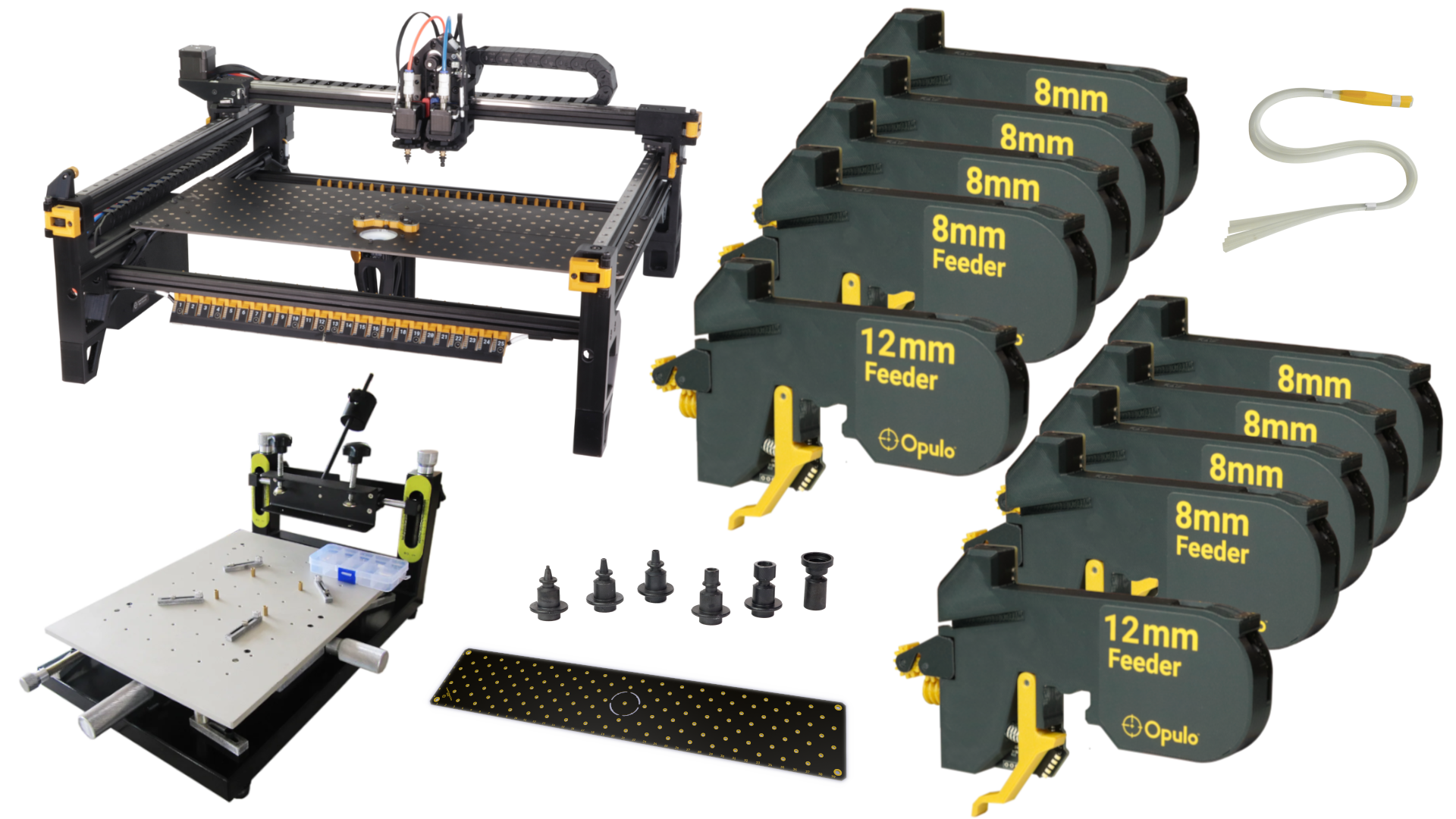

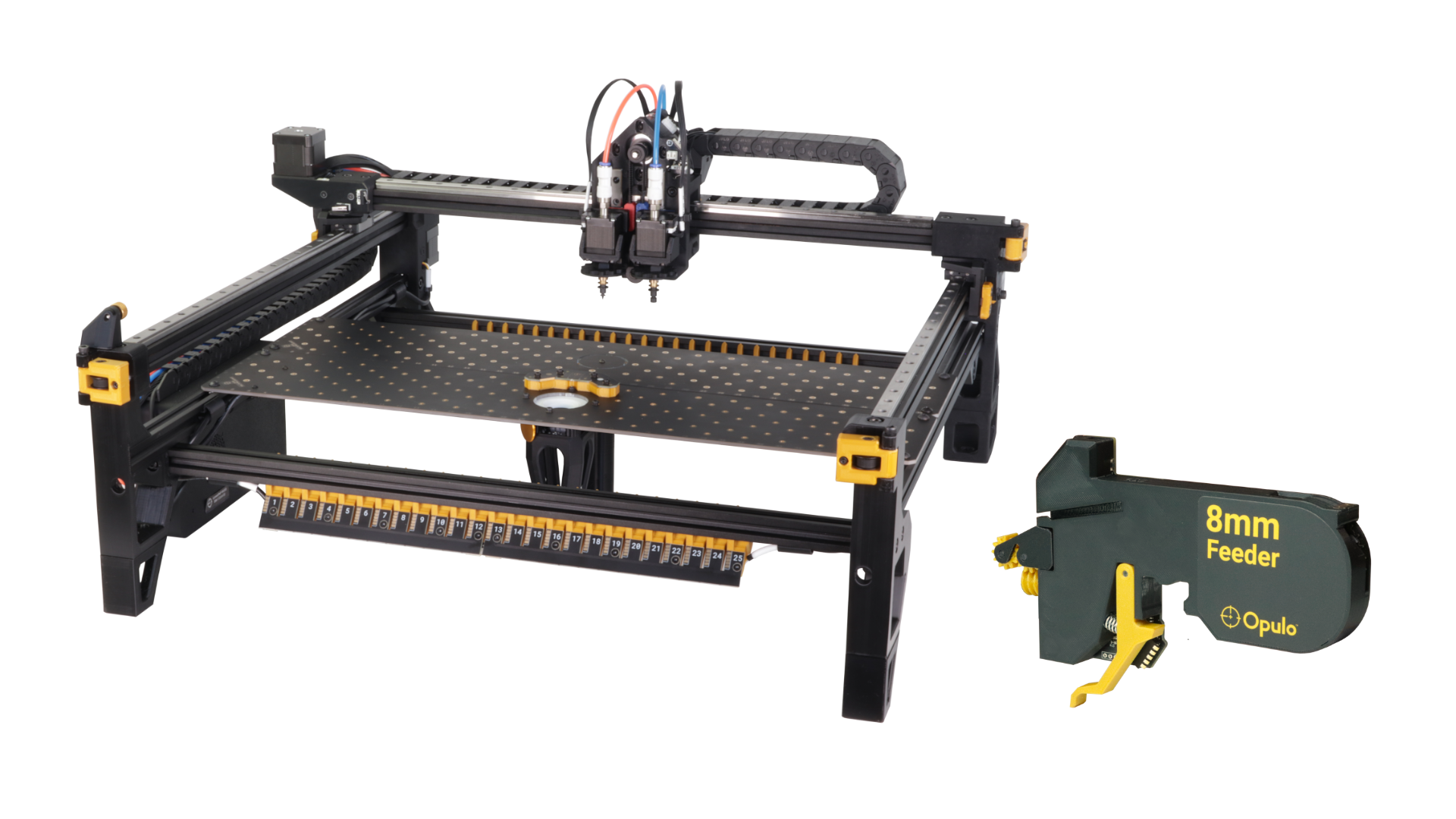

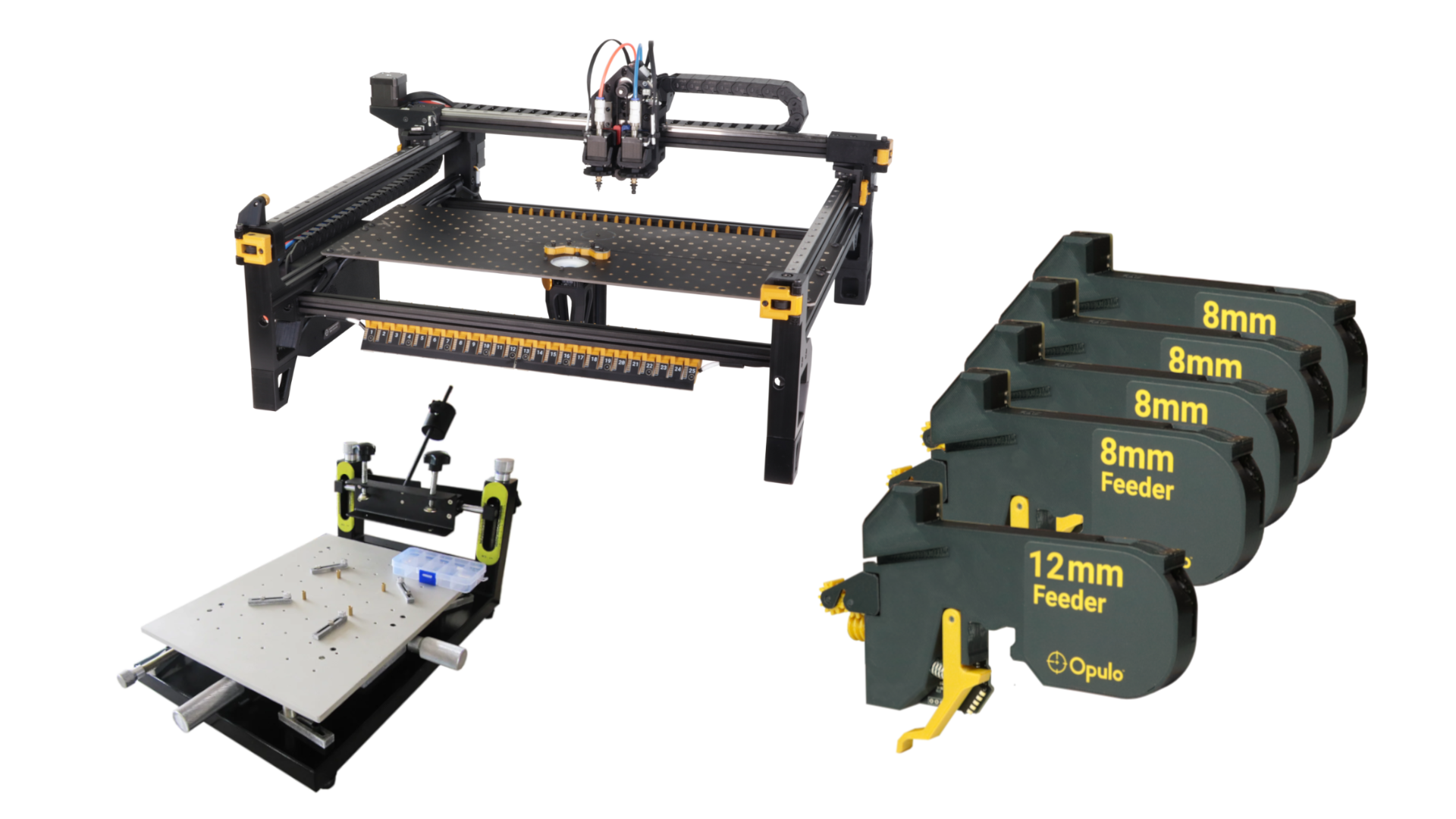

Launch Config ToolBundles
What's in the box:
- LumenPnP v4 (1x Staging Plate, 1x Build Plate)
- 24v 140W Power Supply
- IEC C13 Power Cable
- USB-B Cable
- Tool Kit
- Nozzle Tip Set
- Getting Started Kit
