High-Precision Solder Paste Printer

The High-Precision Solder Paste Printer is designed for accurate and repeatable solder paste application, making it an essential tool for SMT assembly. With precise alignment controls and a stable platform, it ensures consistent results for prototyping and small-batch production.

Key Features:

• Adjustable Platform Positioning – Fine-tune the XY position and angle of the platform to precisely align PCB footprints with the mounted stencil.
• Repeatable Alignment – Once set, the platform holds its position for consistent solder paste application across multiple boards.
• Secure PCB Mounting – Adjustable board mounts provide a stable hold for different board sizes via through-hole alignment pins of various diameters.
• Height Adjustment – Threaded knobs allow precise control to match various PCB thicknesses.
• Compatible with Standard Framed SMT Stencils – Supports framed stencils up to 370mm × 470mm, making it easy to integrate into existing workflows.
• Rigid Metal Construction – Built for durability and long-term use in a production environment.

Specifications:

• Overall Dimensions: 580 × 320 × 259 mm
• Platform Size: 300 × 400 mm
• Max PCB Size: 270 × 370 mm
• Compatible Stencil Size: 370 × 470 mm
• Platform Height: 180 mm
• PCB Positioning Modes: External clamps or reference holes
• Weight: 12.7 kg

What's Included:

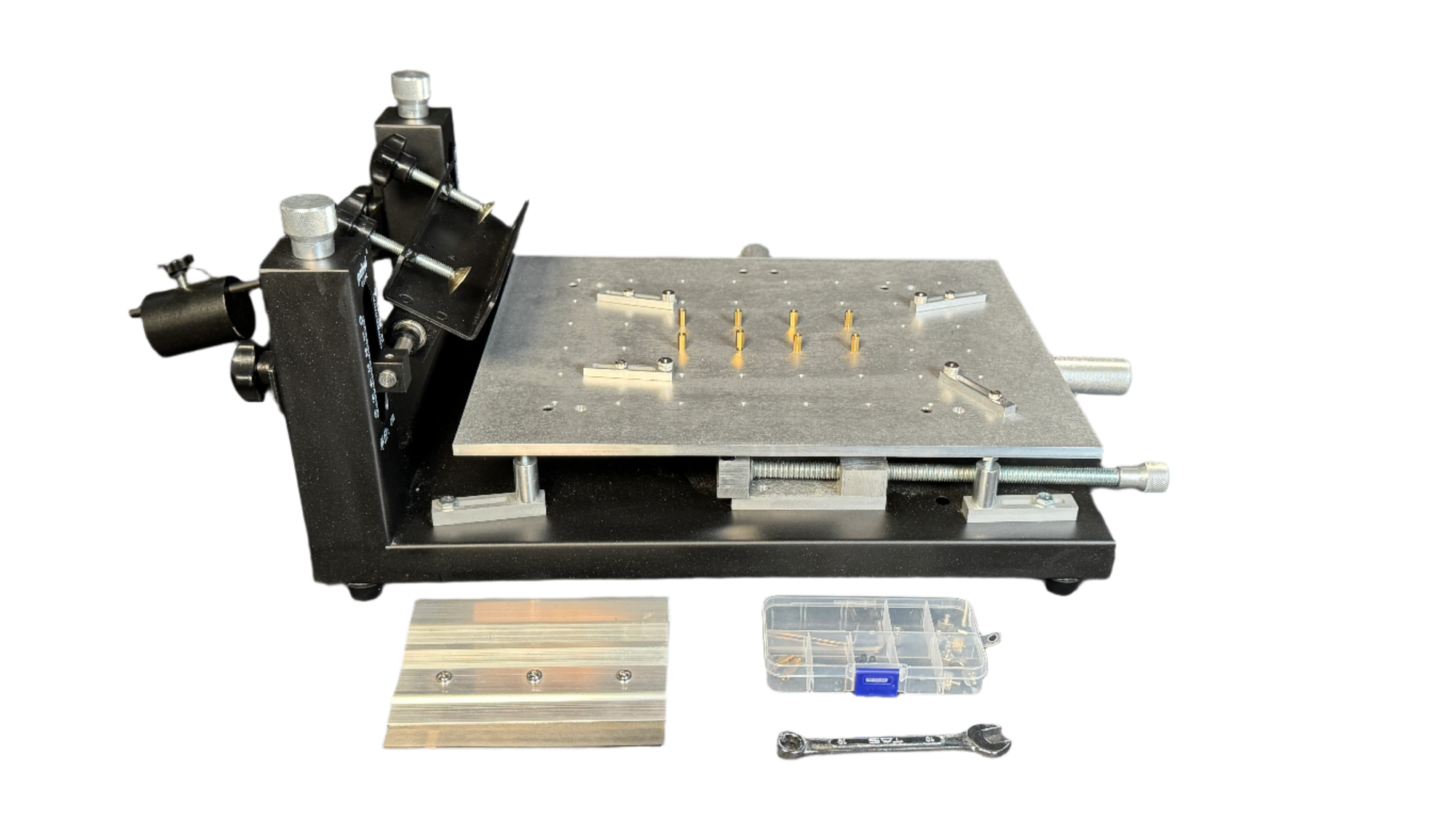

• High-Precision Solder Paste Printer
• Solder Paste Applicator
• PCB Fixture Kit

  • 4x 3mm through-hole alignment pins
  • 4x 1.5mm through-hole alignment pins
  • 4x 1mm through-hole alignment pins
  • 10x brass PCB support posts
• Basic Maintenance Tools
  • 2mm & 4mm allen wrench
  • 10mm wrench

With its precise adjustments and repeatable positioning, this stencil printer streamlines solder paste application for small-scale SMT assembly, reducing errors and improving print quality.

Ships within 1 Week
